KVPL Strainer

• Application
• other, Water, Oil, Gas, Steam lines

• Coating Type
• Anti-corrosive Coating

• Color
• Dark Grey / Black

• Connection
• Other, Flanged

• Connection Type
• Flanged End

• Diameter
• 3 Inch

• Flexibility
• Rigid

• Length
• 210 mm approx.

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• ASTM A216 WCB / SS304 / CI

• Outer Diameter
• 3 Inch (80 mm)

• Product Type
• Other, Y Strainer

• Rated Pressure
• 150 PSI / 10 Bar

• Sealing Type
• Gasket Seal

• Section Shape
• Other, Cylindrical

• Shape
• Other, Y-Shape

• Standard
• Other, ASME/ANSI B16.34

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to 180C

• Tensile Strength
• Up to 415 MPa (Depends on Material)

• Thickness
• 6 mm (Body) approx.

• Thread Type
• Not Applicable for Flanged End

• Tolerance
• 2% approx.

• Usage
• Pipeline filtration

• Yield Strength
• Up to 250 MPa (Depends on Material)

• Application
• other, Industrial Fluid Handling, Water Treatment, Petrochemical Plants

• Coating Type
• Epoxy / Powder Coating

• Color
• Orange

• Connection
• Other, Flanged

• Connection Type
• Flanged End

• Diameter
• 8 inch

• Flexibility
• Rigid

• Length
• 450 mm (approx.)

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• IS 210 FG 260 / ASTM A105 / SS304

• Outer Diameter
• 8 inch

• Product Type

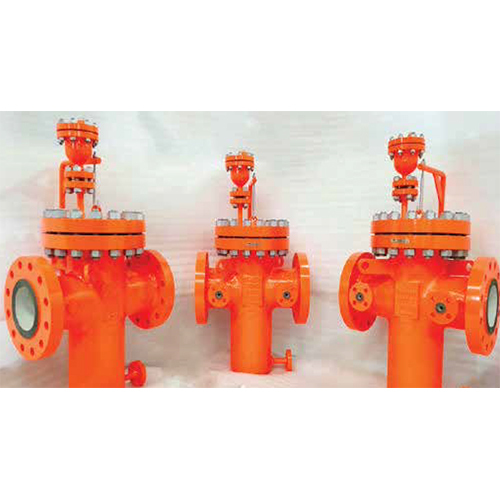

• Other, Basket Strainer With Air Eliminator

• Rated Pressure
• 150 PSI

• Sealing Type
• Gasket Sealed

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASME / ASTM / ANSI

• Surface Treatment
• Other, Powder Coated / Painted

• Temperature Range
• -10C to 180C

• Tensile Strength
• 415 MPa

• Thickness
• 8 mm (typical)

• Tolerance
• 1 mm

• Usage
• Pipeline Filtration

• Yield Strength
• 250 MPa

• Application
• other, Water, Oil, Chemical, Gas Pipelines

• Coating Type
• Epoxy or Paint

• Color
• White / Off-White

• Connection
• Other, Flanged

• Connection Type
• Flanged Ends

• Diameter
• 8 Inch

• Flexibility
• Rigid

• Length
• Varies by design

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• IS210 Gr FG260 / ASTM A216 Gr WCB / SS316

• Outer Diameter
• 8 Inch (Nominal Bore)

• Product Type
• Other, Basket Strainer

• Rated Pressure
• PN16 / PN25 / Class 150

• Sealing Type
• Gasket Sealing

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASME/ANSI B16.34 / DIN

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -20C to 200C

• Tensile Strength
• Up to 410 MPa

• Thickness
• 12 mm (Body Thickness)

• Thread Type
• N/A (Flanged connection)

• Tolerance
• 1 mm

• Usage
• Solid-liquid separation in pipelines

• Yield Strength
• Up to 250 MPa

• Application
• other, Pipeline Straining

• Bend Radius
• Fixed, as per Y-Shape

• Coating Type
• Fusion Bonded Epoxy

• Color
• Blue

• Connection
• Other, Flanged

• Connection Type
• Flange End

• Diameter
• 8 Inch

• Flexibility
• Rigid

• Length
• Approx. 340 mm

• Material
• Other , Cast Iron / Ductile Iron

• Material Grade
• ASTM A536 / IS 210

• Outer Diameter
• 8 Inch (203 mm)

• Product Type
• Other, Y Strainer

• Rated Pressure
• PN10 / PN16 / 150 PSI

• Sealing Type
• Gasket Seal

• Section Shape
• Other, Cylindrical

• Shape
• Other, Y-Shape

• Standard
• Other, ANSI / DIN / BS

• Surface Treatment
• Other, Epoxy Powder Coated

• Temperature Range
• -10C to 120C

• Tensile Strength
• 400 MPa (Typical for Ductile Iron)

• Thickness
• 8 mm to 20 mm (depending on pressure rating)

• Thread Type
• Not Applicable (Flanged)

• Tolerance
• 1% nominal

• Usage
• Water, Oil, Gas filtration

• Yield Strength
• 250 MPa (Typical)

• Application
• other, Pipeline systems, Water, Steam, Oil, Gas

• Bend Radius
• NA (Rigid Component)

• Coating Type
• Anti-corrosion coating

• Color
• Grey

• Connection
• Other, Flanged

• Connection Type
• Flange End

• Diameter
• 12 Inch (300 mm)

• Flexibility
• Rigid

• Length
• Custom / As per standard

• Material
• Other , Cast Iron / Stainless Steel / Carbon Steel (as per requirement)

• Material Grade
• SS304 / SS316 / CI Gr 20 / WCB / CF8M

• Outer Diameter
• 12 Inch

• Product Type
• Other, Y Strainer

• Rated Pressure
• PN16 / PN25 / 150# / 300#

• Sealing Type
• Gasket Seal

• Section Shape
• Round

• Shape
• Other, Y-Shaped

• Standard
• Other, ASME / DIN / BS / ANSI

• Surface Treatment
• Other, Epoxy Painted / Powder Coated

• Temperature Range
• -10C to 200C

• Tensile Strength
• 400 MPa (min, for CI/CS)

• Thickness
• Customizable, typically 12 mm and above

• Thread Type
• NA (Flanged type)

• Tolerance
• 1 mm

• Usage
• Industrial Filtration

• Yield Strength
• 250 MPa (min, for CI/CS)

• Application
• other, Water, Oil, Chemical, Petrochemical Pipeline Systems

• Bend Radius
• N/A (Straight Body)

• Coating Type
• Epoxy / Red Oxide Primer (optional)

• Color
• Metallic Grey / As per customer requirement

• Connection
• Other, Flanged

• Connection Type
• Flanged

• Diameter

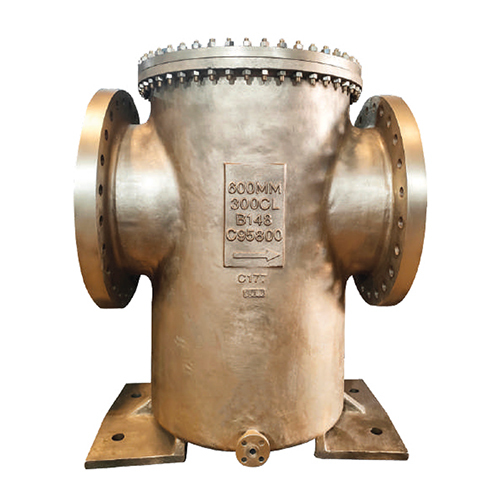

• 24 Inch

• Flexibility
• Rigid

• Length
• Varies by installation (approx. 700-1000 mm)

• Material
• Other , Cast Iron / Stainless Steel / Carbon Steel (varies by order)

• Material Grade
• ASTM A216 WCB / SS304 / SS316 / CS

• Outer Diameter
• 610 mm (24 inches)

• Product Type
• Other, Basket Strainer

• Rated Pressure
• 150# / 300# / 600# (as required)

• Sealing Type
• Gasket (PTFE / Rubber / Graphite as specified)

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASME/ANSI B16.5

• Surface Treatment
• Other, Sandblasted / Painted / Epoxy Coated

• Temperature Range
• -10C to 200C (based on material)

• Tensile Strength
• Upto 485 MPa (for Carbon Steel)

• Thickness
• As per design (typically 8-12 mm)

• Tolerance
• 1 mm

• Usage
• Liquid Filtration and Solid Removal

• Yield Strength
• 250 MPa (for Carbon Steel)

• Application
• other, Water, Oil, Gas, Chemical Line Filtration

• Coating Type
• Fusion Bonded Epoxy / Powder Coating

• Color
• White with Blue Interior Coating

• Connection
• Other, Flanged Ends

• Connection Type
• Flange Mounted

• Diameter
• 28 Inch

• Flexibility
• Rigid

• Length
• As per design (typically 900-1500 mm for 28 inch)

• Material
• Other , Cast Iron / Ductile Iron

• Material Grade
• EN GJL-250 / ASTM A536

• Outer Diameter
• 28 Inch (approx. 711 mm)

• Product Type
• Other, Y Strainer

• Rated Pressure
• PN10 / PN16 / 150 PSI

• Sealing Type
• Gasket Sealing

• Section Shape
• Round

• Shape
• Other, Y Type

• Standard
• Other, ANSI / DIN / BS

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to 120C

• Tensile Strength
• Minimum 400 MPa

• Thickness
• As per design / 15-30 mm (approx.)

• Thread Type
• Not Applicable (Flanged)

• Tolerance
• 1 mm

• Usage
• Filtration of debris in pipelines

• Yield Strength
• Minimum 250 MPa

• Application
• other, Water, Oil, Gas, Chemical Pipelines

• Coating Type
• Epoxy Paint

• Color
• Blue

• Connection
• Other, Flanged Ends

• Connection Type
• Bolted Flange

• Diameter

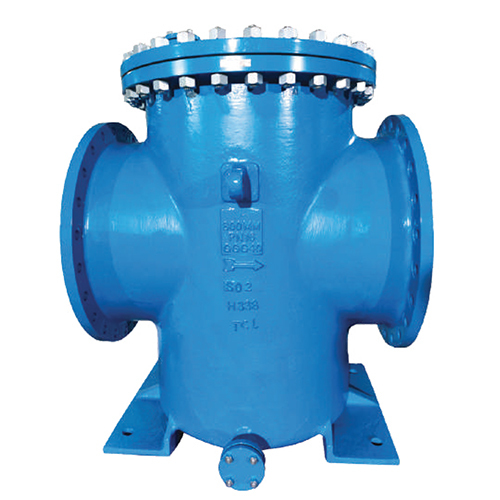

• 32 Inch

• Flexibility
• Rigid

• Length
• Varies as per design

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• A216 WCB / SS304 / SS316 as specified

• Outer Diameter
• 32 Inch (approx. 813 mm)

• Product Type
• Other, Basket Strainer

• Rated Pressure
• 150# / 300# / Customized

• Sealing Type
• Gasketed

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASME / DIN / BS

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to 180C

• Tensile Strength
• 400 MPa (Cast Iron) / As per material

• Thickness
• Customized as per requirement

• Thread Type
• N/A (Flanged)

• Tolerance
• 1 mm

• Usage
• Industrial Pipeline Filtration

• Yield Strength
• 250 MPa (Cast Iron) / As per material

• Application
• other, Water, Oil, Chemical, Petrochemical, Industrial, Utility Services

• Coating Type
• Epoxy Powder Coated

• Color
• Blue

• Connection
• Other, Flanged

• Connection Type
• Flanged End

• Diameter
• 36 Inch

• Flexibility
• Rigid

• Length
• Customized / As per requirement

• Material
• Other , Cast Iron or Carbon Steel

• Material Grade
• WCB / CI / CS / Stainless Steel (optional)

• Outer Diameter
• 36 Inch (914 mm)

• Product Type
• Other, Basket Strainer

• Rated Pressure
• PN16 (16 bar)

• Sealing Type
• Gasket Seal (Rubber/Graphite/CNAF)

• Section Shape
• Round

• Shape
• Other, Cylindrical / Basket

• Standard
• Other, DIN / ASME / BS

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to 120C (Standard)

• Tensile Strength
• 350-500 MPa (depending on material)

• Thickness
• Varies per design specification (commonly 16-35 mm)

• Thread Type
• Not Applicable (flanged connection)

• Tolerance
• 1 mm

• Usage
• Filtration of pipeline contaminants

• Yield Strength
• 200-250 MPa (depending on material)

• Application
• other, Water, Oil, Gas and Chemical Pipelines

• Coating Type
• Epoxy Powder Coating

• Color
• Blue

• Connection
• Other, Flanged

• Connection Type
• Flanged End

• Diameter

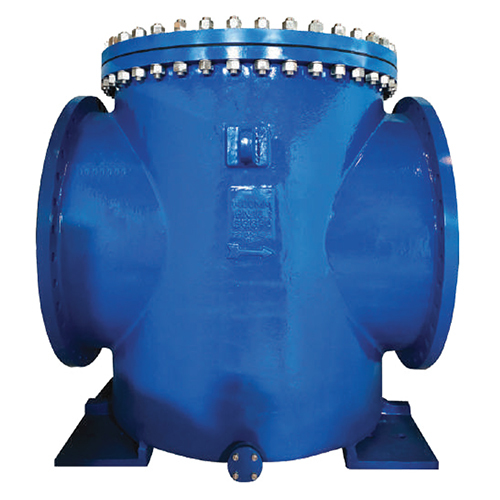

• 56 Inch

• Flexibility
• Rigid

• Length
• Custom/Standard (typically varies, to be confirmed per manufacturer)

• Material
• Other , Cast Iron / Carbon Steel (typically used for industrial strainers)

• Material Grade
• GGG40 (Ductile Iron)

• Outer Diameter
• 56 Inch

• Product Type
• Other, Basket Strainer

• Rated Pressure
• PN16

• Sealing Type
• Gasket Sealed

• Section Shape
• Round

• Shape
• Other, Cylindrical / Basket

• Standard
• Other, DIN / ANSI / BS

• Surface Treatment
• Other, Epoxy Painted

• Temperature Range
• -10C to 120C

• Tensile Strength
• Minimum 420 MPa (Ductile Iron GGG40)

• Thickness
• Standardized per industrial norms (varies with pressure rating)

• Thread Type
• Not Applicable (Flanged Connection)

• Tolerance
• 1 mm

• Usage
• Filtration / Debris Removal in Pipelines

• Yield Strength
• Minimum 320 MPa (Ductile Iron GGG40)

• Application
• other, Oil & Gas, Water Treatment, Chemical Processing

• Coating Type
• PTFE Xylon Coated Fastener Assembly

• Color
• Orange

• Connection
• Other, Flanged

• Connection Type
• Flanged End

• Diameter
• Variable (Standard pipe sizes 2 to 16)

• Flexibility
• Rigid

• Length
• Between 150 mm and 600 mm

• Material
• Other , Carbon Steel / Stainless Steel

• Material Grade
• ASTM A216 WCB / SS304 / SS316

• Outer Diameter
• 50 mm - 400 mm (depending on size)

• Product Type
• Other, Basket Strainer

• Rated Pressure
• 150 PSI / 300 PSI (based on design)

• Sealing Type
• Gasket Sealing (PTFE/Spiral Wound)

• Section Shape
• Other, Round / Cylindrical

• Shape
• Other, T-shaped

• Standard
• Other, ASME B16.5 / DIN

• Surface Treatment
• Other, PTFE Xylon Coated Fasteners, Painted Body

• Temperature Range
• -20C to +200C

• Tensile Strength
• Up to 485 MPa (Body material dependent)

• Thickness
• 6 mm - 15 mm (body)

• Thread Type
• N/A (Flange connection)

• Tolerance
• 0.25 mm

• Usage
• Filtration of foreign particles in pipelines

• Yield Strength
• Up to 250 MPa (Body material dependent)

• Application
• other, Water supply, Irrigation, Process industries, Oil & Gas, Chemical Plants

• Coating Type
• Fusion Bonded Epoxy / Polyurethane

• Color
• Blue

• Connection
• Other, Flanged

• Connection Type
• Flanged End

• Diameter
• Varies from 2 (50mm) up to 30 (750mm) or more

• Flexibility
• Rigid

• Length
• Dependent on configuration (e.g., 200-1000 mm)

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel (varies by manufacturer)

• Material Grade
• SS 304 / SS 316 / IS 210 Gr FG 260 / ASTM A216 WCB

• Outer Diameter
• Customizable as per pipeline size (e.g., 50mm to 700mm+)

• Product Type
• Other, Basket Type Strainer

• Rated Pressure
• PN10 / PN16 / Class 150 / 300

• Sealing Type
• Gasket Seal (Neoprene, PTFE, Graphite, etc.)

• Section Shape
• Round

• Shape
• Other, Cylindrical Basket

• Standard
• Other, ASME / DIN / BS / IS

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to 220C (based on body and gasket material)

• Tensile Strength
• 350-500 MPa (depends on material)

• Thickness
• 6-30 mm (varies by size/model)

• Tolerance
• 1mm

• Usage
• Filtration of pipeline debris in liquid flow systems

• Yield Strength
• 200-400 MPa (depends on material)

• Application
• other, Industrial pipelines, water treatment plants, process industries

• Coating Type
• Epoxy / Industrial Grade Paint

• Color
• Industrial Grey

• Connection
• Other, Flanged

• Connection Type
• Flanged Ends

• Diameter
• 150 mm (Strainer housing)

• Flexibility
• Rigid

• Length
• 700 mm (overall assembly length approx.)

• Material
• Other , Carbon Steel / Stainless Steel

• Material Grade
• SS304, SS316, ASTM A216 WCB

• Outer Diameter
• 150 mm (typical for each strainer housing)

• Product Type
• Other, Duplex Strainer with Separate 3 Way Connection Ball Valve

• Rated Pressure
• PN16 / 150 PSI

• Sealing Type
• Gasket Seal

• Section Shape
• Round

• Shape
• Other, Cylindrical (Strainers), Spherical (Valve Chambers)

• Standard
• Other, ASME / API

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to +180C

• Tensile Strength
• Up to 520 MPa (for stainless steel)

• Thickness
• 8 mm (typical)

• Thread Type
• N/A (Flanged connection)

• Tolerance
• 0.1 mm

• Usage
• Fluid Filtration / Particle Removal

• Yield Strength
• Up to 210 MPa (for stainless steel)

• Application
• other, Oil, Gas, Water, Chemical, Process Industries

• Coating Type
• Internal & external corrosion resistant epoxy

• Color
• Blue (Standard), Custom on request

• Connection
• Other, Flanged

• Connection Type
• Flanged Ends

• Diameter
• 2 inch to 24 inch (as available)

• Flexibility
• Rigid

• Length
• As per capacity/model

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• A216 WCB / SS304 / SS316

• Outer Diameter
• As per design (varies by capacity)

• Product Type
• Other, Duplex Strainer

• Rated Pressure
• 150 PSI, 300 PSI, or custom

• Sealing Type
• Gasket (Graphite/EPDM/NBR)

• Section Shape
• Round

• Shape
• Other, Cylindrical

• Standard
• Other, ASME / DIN / BS

• Surface Treatment
• Other, Epoxy Paint / Powder Coated

• Temperature Range
• -10C to +200C (material dependent)

• Tensile Strength
• Up to 485 MPa (varies with material)

• Thickness
• 6 mm - 18 mm (depending on size/model)

• Thread Type
• Not Applicable (Flanged)

• Tolerance
• 0.5 mm

• Usage
• Continuous filtration in pipelines

• Yield Strength
• Up to 250 MPa (varies with material)

• Application
• other, Oil & Gas, Petrochemical, Water Treatment, Chemical Industry

• Coating Type
• PTFE Xylon Coated Fasteners

• Color
• White body with blue fastener heads

• Connection
• Other, Flanged

• Connection Type
• Flanged Ends

• Diameter
• DN25 to DN600

• Flexibility
• Rigid

• Length
• Customized as per pipeline specification

• Material
• Other , Carbon Steel / Stainless Steel

• Material Grade
• ASTM A216 WCB / A351 CF8 / CF8M / Equivalent

• Outer Diameter
• Available from 1 to 24 (as per requirement)

• Product Type
• Other, Tee Strainer with PTFE Xylon Coated Fasteners Assembly

• Rated Pressure
• Class 150 / 300 / 600

• Sealing Type
• Gasket Sealed

• Section Shape
• Other, Tee

• Shape
• Other, Tee

• Standard
• Other, ASME / ASTM / DIN

• Surface Treatment
• Other, PTFE Xylon Coated

• Temperature Range
• -29C to +180C (depending on gasket & material)

• Tensile Strength
• Up to 485 MPa (material dependent)

• Thickness
• Up to 20 mm (varies by size)

• Thread Type
• No thread (Flanged)

• Tolerance
• 0.1 mm

• Usage
• Filtration in Pipeline Systems

• Yield Strength
• Up to 250 MPa (material dependent)

• Application
• other, Industrial, Water Treatment, Oil & Gas, Chemical Processing

• Coating Type
• Epoxy / Anti-corrosive

• Color
• Silver / Grey

• Connection
• Other, Flanged

• Connection Type
• Bolted Flange

• Diameter
• As per pipe size (DN50-DN600)

• Flexibility
• Rigid

• Length
• 150 mm - 800 mm

• Material
• Other , Cast Iron / Stainless Steel / Carbon Steel

• Material Grade
• ASTM A216 Gr.WCB / SS316 / SS304

• Outer Diameter
• 50 mm - 600 mm

• Product Type
• Other, Tee Type Strainer

• Rated Pressure
• 10 Bar / 16 Bar

• Sealing Type
• Gasket Sealing

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASME B16.5 / DIN / BS / IS

• Surface Treatment
• Other, Epoxy Coated / Painted

• Temperature Range
• -10C to 200C

• Tensile Strength
• 415 MPa (depends on material)

• Thickness
• 10 mm - 50 mm (varies by size)

• Thread Type
• NA (Flanged End)

• Tolerance
• 0.1 mm

• Usage
• Pipeline Filtration

• Yield Strength
• 250 MPa (depends on material)

• Application
• other, Water, Oil, Gas, Chemicals

• Bend Radius
• Fixed design (not flexible)

• Coating Type
• Epoxy Coated

• Color
• Grey with Blue Bolts

• Connection
• Other, Flanged Ends

• Connection Type
• Flanged

• Diameter
• DN50 to DN300

• Flexibility
• Rigid

• Length
• Customized as per requirement

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• IS 210 Gr FG 260 / ASTM A216 Gr WCB / CF8M

• Outer Diameter
• 50 mm to 300 mm (varies by design)

• Product Type
• Other, Y Strainer With Gate Valve

• Rated Pressure
• PN10 / PN16 / 150# / 300#

• Sealing Type
• Gasket Sealed

• Section Shape
• Round

• Shape
• Other, Y-Shaped

• Standard
• Other, ASME / DIN / BS / IS

• Surface Treatment
• Other, Anti-Corrosion Painted

• Temperature Range
• -10C to +220C

• Tensile Strength
• Up to 420 MPa (depends on material)

• Thickness
• Standard (as per design)

• Thread Type
• Not Applicable (Flanged Connection)

• Tolerance
• 1%

• Usage
• Pipeline Filtration and Flow Regulation

• Yield Strength
• Up to 250 MPa (depends on material)

• Application
• other, Industrial pipelines, water, oil, gas, steam, chemicals

• Bend Radius
• N/A (non-flexible fitting)

• Coating Type
• Epoxy / Powder-coated

• Color
• White with blue fasteners

• Connection
• Other, Flanged

• Connection Type
• Flanged end

• Diameter
• 15 mm - 600 mm

• Flexibility
• Rigid

• Length
• Standard as per class rating

• Material
• Other , Cast Iron / Carbon Steel / Stainless Steel

• Material Grade
• ASTM A216 / A351 / A105

• Outer Diameter
• Varies from 15mm to 600mm

• Product Type
• Other, Y Type Strainer

• Rated Pressure
• PN10, PN16, PN25, PN40

• Sealing Type
• Gasket sealing

• Section Shape
• Other, Cylindrical body with flanged ends

• Shape
• Other, Y-shaped

• Standard
• Other, ASME / DIN / BS / IS

• Surface Treatment
• Other, Epoxy painted / Powder coated / Shot blasted

• Temperature Range
• -20C to 450C

• Tensile Strength
• 415 MPa (typical for cast steel)

• Thickness
• 5mm - 30mm (varies by size)

• Thread Type
• Not applicable (flanged connection)

• Tolerance
• 1% dimensional tolerance

• Usage
• Filtration of debris from pipelines

• Yield Strength
• 250 MPa
