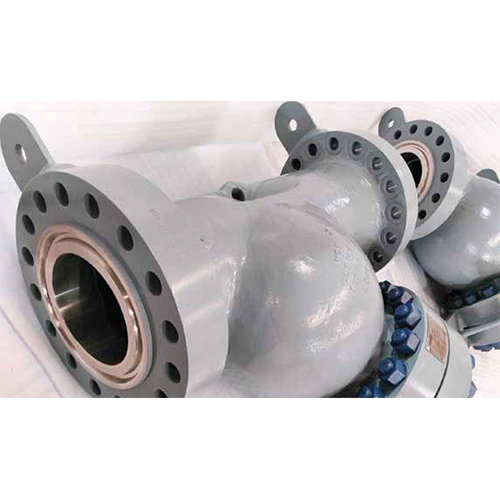

12 Inch Y Strainer

Name: 12 Inch Y Strainer
Brand: Karan Valves Pvt. Ltd.

Get a Price/Quote

MOQ : 1 Unit

12 Inch Y Strainer Specification

Tensile Strength
400 MPa (min, for CI/CS)

Sealing Type
Gasket Seal

Diameter
12 Inch (300 mm)

Connection Type
Flange End

Temperature Range
-10C to 200C

Bend Radius
NA (Rigid Component)

Flexibility
Rigid

Coating Type
Anti-corrosion coating

Tolerance
1 mm

Thread Type
NA (Flanged type)

Yield Strength
250 MPa (min, for CI/CS)

Product Type
Y Strainer

Material
Cast Iron / Stainless Steel / Carbon Steel (as per requirement)

Connection
Flanged

Shape
Y-Shaped

Standard
ASME / DIN / BS / ANSI

Surface Treatment
Epoxy Painted / Powder Coated

Outer Diameter
12 Inch

Section Shape
Round

Length
Custom / As per standard

Thickness
Customizable, typically 12 mm and above

Color
Grey

Usage
Industrial Filtration

Rated Pressure
PN16 / PN25 / 150# / 300#

Application
Pipeline systems, Water, Steam, Oil, Gas

Material Grade
SS304 / SS316 / CI Gr 20 / WCB / CF8M

Mesh Size
40-100 mesh (custom available)

End Connection Standard
ANSI B16.5 / DIN/BS

Cleaning
Bolted cap for easy removal/cleaning

Mounting
Horizontal and Vertical position

Face to Face Dimension
As per ASME B16.10

Screen Material
Stainless Steel

Pressure Drop
Minimal, design optimized

12 Inch Y Strainer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About 12 Inch Y Strainer

Experience instant savings and eminent performance with our 12 Inch Y Strainer-crafted to deliver pristine filtration in industrial pipelines. The radiant stainless steel mesh (40-100, custom options) ensures reliable separation of debris, while the robust body-available in cast iron, stainless, or carbon steel-guarantees durability and minimal pressure drop. Designed to ANSI, ASME, DIN, and BS standards, this Y-strainer features a bolted cap for fresh, easy cleaning and optimal maintenance. Redeem superior quality with epoxy or powder-coated finishes, and enjoy flawless operation in water, oil, steam, and gas systems.

Features, Applications, and Direction of Use

The 12 Inch Y Strainer serves effectively in industrial pipeline systems, treating water, oil, steam, and gas. Its key features include a durable, epoxy or powder-coated body, minimal pressure drop, customizable mesh sizes, and bolted cap for quick cleaning. Designed for both vertical and horizontal mounting, installation is direct into flanged sections. Adhering to eminent international standards, this strainer safeguards sensitive equipment by securing pristine filtration throughout critical operations.

Delivery, Payment, and Export Markets

Our premium 12 Inch Y Strainer is competitively priced on the current list price and offers prompt delivery-shipped goods typically arrive within 1 to 2 weeks of order confirmation. Flexible payment terms are available for our valued clients. We proudly serve leading export markets in Asia, the Middle East, Africa, and Europe, ensuring consistent supply and support. Benefit from our efficient logistics and unwavering commitment to customer satisfaction across global regions.

FAQ's of 12 Inch Y Strainer:

Q: How is maintenance performed on the 12 Inch Y Strainer?

A: Maintenance is straightforward, thanks to the bolted cap design that allows easy removal and cleaning of the filter screen without dismantling the entire unit.

Q: What are the key benefits of using a Y-shaped strainer in pipeline systems?

A: The Y-shaped design offers minimal pressure drop, radiant debris capture, and eminent compatibility with both horizontal and vertical mounting, ensuring optimal protection of pumps and sensitive process equipment.

Q: Where can the 12 Inch Y Strainer be installed?

A: This strainer is ideal for industrial pipeline systems where liquid or gas filtration is required, including water treatment, steam lines, oil pipelines, and gas distribution networks.

Q: Which materials and coatings are available for the 12 Inch Y Strainer?

A: Depending on your requirements, the strainer can be manufactured in cast iron, stainless steel, or carbon steel with epoxy-painted or powder-coated anti-corrosion finishes for a pristine, long-lasting effect.

Q: What is the process for ordering a custom mesh size or thickness?

A: Simply specify your required mesh size (between 40-100 or custom), thickness, and material during the inquiry. Our team will confirm design specifications and provide a tailored solution to redeem optimal performance.
