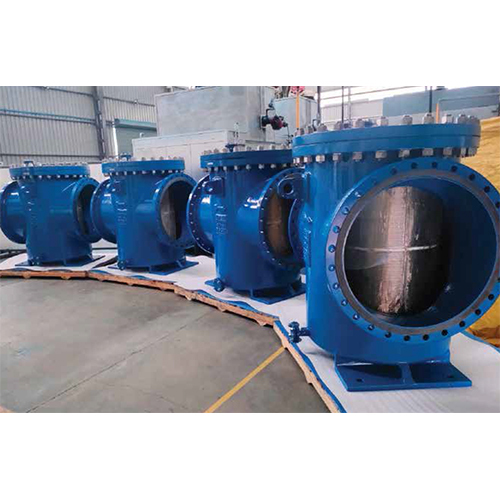

Basket Type Strainer

Name: Basket Type Strainer
Brand: Karan Valves Pvt. Ltd.

Get a Price/Quote

MOQ : 1 Unit

Basket Type Strainer Specification

Tensile Strength
350-500 MPa (depends on material)

Tolerance
1mm

Yield Strength
200-400 MPa (depends on material)

Sealing Type
Gasket Seal (Neoprene, PTFE, Graphite, etc.)

Connection Type
Flanged End

Temperature Range
-10C to 220C (based on body and gasket material)

Flexibility
Rigid

Coating Type
Fusion Bonded Epoxy / Polyurethane

Diameter
Varies from 2 (50mm) up to 30 (750mm) or more

Product Type
Basket Type Strainer

Material
Cast Iron / Carbon Steel / Stainless Steel (varies by manufacturer)

Connection
Flanged

Shape
Cylindrical Basket

Standard
ASME / DIN / BS / IS

Surface Treatment
Epoxy Coated / Painted

Outer Diameter
Customizable as per pipeline size (e.g., 50mm to 700mm+)

Section Shape
Round

Length
Dependent on configuration (e.g., 200-1000 mm)

Thickness
6-30 mm (varies by size/model)

Color
Blue

Usage
Filtration of pipeline debris in liquid flow systems

Rated Pressure
PN10 / PN16 / Class 150 / 300

Application
Water supply, Irrigation, Process industries, Oil & Gas, Chemical Plants

Material Grade
SS 304 / SS 316 / IS 210 Gr FG 260 / ASTM A216 WCB

Compliance
Meets industrial norms for pipeline filtration systems

Operation
Non-Automatic, requires manual intervention

Drain Plug
Provided at bottom for maintenance

End Connection Standard
ANSI B16.5 / DIN 2633

Screen Type
Perforated sheet or mesh

Replaceable Basket
Yes

Pressure Drop
Low (varies with flow rate and mesh size)

Corrosion Resistance
High (with epoxy or PU coating)

Mesh Size
1mm to 10mm (customizable)

Flow Direction
As indicated on body

Cleaning Method
Manual Removal via Bolted Cover

Body Cover Joint
Stud & Nut

Installation Position
Horizontal pipeline installation

Basket Type Strainer Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Day

Delivery Time
1 Days

Main Domestic Market
All India

About Basket Type Strainer

Discover a peerless solution for pipeline debris filtration with our imposing Basket Type Strainer, engineered for top-tier industrial demands. Featuring a perforated or mesh screen (customizable from 1mm to 10mm), this strainer boasts rarefied corrosion resistance through epoxy or PU coatings. The flanged, round section basket is easily removed via bolted cover for manual cleaning. Benefit from competitive pricing, robust standards compliance (ANSI/ASME/DIN/BS/IS), and highly flexible specifications - including custom diameters, lengths, and material grades. Specially designed for seamless horizontal pipeline installation, this strainer guarantees low pressure drop and enduring operational reliability.

Commercial Utility and Competitive Edge of Basket Type Strainer

This Basket Type Strainer excels in commercial applications such as water supply, irrigation, oil & gas, chemical processing, and industrial flow systems. Used as an essential first line of defense, it filters debris and safeguards critical equipment downstream. Its primary competitive advantages include customizable mesh size, imposing corrosion resistance, robust construction, and special compatibility with multiple global standards. Reliable manual operation and maintenance-friendly design ensure rarefied longevity and cost efficiency, making it the top choice for diverse industries.

Export Markets, Delivery, and Certification Credentials

Our Basket Type Strainer is dispatched globally, meeting the needs of clients in markets across Europe, the Middle East, Asia, and Africa. Secure shipping and careful packaging guarantee that all units are delivered safely and efficiently. Samples are available upon request, supported by a transparent sample policy. Strict adherence to certifications and norms-including ASME, DIN, and IS-ensures performance and compliance. Partner with us for consistently reliable supply and prompt delivery, no matter your project location.

FAQ's of Basket Type Strainer:

Q: How is the basket cleaned in the Basket Type Strainer?

A: Cleaning the Basket Type Strainer involves manual removal of the basket via a bolted cover. This process allows for easy access to the debris, which can then be cleared out before securely replacing the basket and cover.

Q: What materials and coatings are available for the Basket Type Strainer?

A: The strainer can be manufactured from cast iron, carbon steel, or stainless steel (grades SS 304, SS 316, etc.), with surface treatments such as fusion-bonded epoxy or polyurethane coating to achieve high corrosion resistance.

Q: Where can the Basket Type Strainer be installed?

A: This strainer is designed for horizontal pipeline installation and is suitable for a variety of settings, including water supply systems, irrigation networks, chemical plants, process industries, and oil & gas pipelines.

Q: What are the main benefits of using a Basket Type Strainer in pipeline systems?

A: Key benefits include effective debris filtration, low pressure drop, enhanced equipment protection, easy maintenance with a replaceable basket, and adherence to multiple international standards for reliable performance.

Q: What process ensures the Basket Type Strainer meets industrial norms?

A: Every strainer undergoes stringent quality checks and conforms to global standards such as ASME, DIN, BS, and IS, assuring safety, reliability, and peerless filtration performance in industrial environments.
